Silent, smooth and motorised at the touch of your hand or by remote or app control.
The Forest Shuttle motorised system is available in three types:
Shuttle M, Shuttle L and Shuttle S.
All three motors offer these functions:
Touch lmpulse Technology, gently pulling the curtain by hand will activate the motor (standard feature);
Integrated Emergency Control with automatic declutch in case of power failure, to ensure a manual operation of the curtains (standard feature);
Modular motor, different modules can be attached for various control options: Radio Frequency, Wall Switch, lnfrared, Domotics, Building/Hotel Automation, Serial Communication, Z-wave, etc.;
Ultra Silent motor;
Slow start and slow stop;
Full automatic setting of the limits;
Programming of intermediate positions possible;
Touch lmpulse Sensitivity adjustable; high sensitivity, low sensitivity, and off;
Stack-back position programmable to every desired setting;
FMS tracks and components available in white and black;
Clickable off-set carriers for a straight heading of the curtain; rolling carriers and FES Easyfold carriers also available;
Kevlar based drive belt;
All KS brackets applicable;
Motors can also be used on MRS Motorized Rod System;
Tandem motor application possible as well.
This curtain motor has an integrated power adaptor and only needs a mains cable. Furthermore, the RF multi receiver is integrated in the motor itself, allowing for an even cleaner look of the system. In addition to this, the motor speed can be increased by up to 20%, allowing for speeds of up to 18 cm per second. Finally, the motor is able to carry curtain weights of up to 40 kg.
On top of that, this motor still incorporates the features that customers and users all around the world have come to love and appreciate, such as the noiseless operation, smooth touch control operation, automatic declutch during power failure and of course the fact that it’s used in combination with the world’s slimmest motorized curtain track system, the FMS® rail, which can be made in lengths of up to 14 meters.
The Forest Shuttle® 'S' is identical to the Forest Shuttle® 'L' with the only difference that the adapter is placed external.
|
|
Shuttle M |
Shuttle S |
Shuttle L |
|
Voltage Shuttle |
24Vdc |
24Vdc |
100 - 240V~ 50 - 60hz |
|
RF Multi Receiver |
Internal |
Internal |
Internal |
|
Power Supply |
External, 1,5A - 50-60hz; output 24Vdc - 2,7A |
External, 100 - 240Vac - 0,8A - 50 - 60hz; output 24Vdc - 2,5A |
Internal |
|
Max. power |
65 W |
40 W |
40 W |
|
Torque |
1,5 Nm |
1 Nm |
1 Nm |
|
Speed |
14 – 17 cm/s |
14 – 17 cm/s |
14 – 17 cm/s |
|
Noise Level |
< 40 dB(A) |
< 40 dB(A) |
< 40 dB(A) |
|
Max. curtain weight |
70 kg |
40 kg |
40 kg |
|
Dimensions Motor |
7 x 5 x 23 cm |
7 x 5 x 20 cm |
7 x 5 x 28 cm |
|
Net. weight motor |
930 gr. |
700 gr. |
975 gr. |
|
Dimensions Power Supply |
50 x 110 x 30 mm |
50 x 80 x 30 mm |
- |
|
Protection degree |
IP20 |
IP20 |
IP20 |
|
Max. running time |
175 sec (in one direction) |
240 sec (in one direction) |
240 sec. (in one direction) |
|
Certification & Marking |
CE/FCC |
CE/FCC |
CE/FCC |

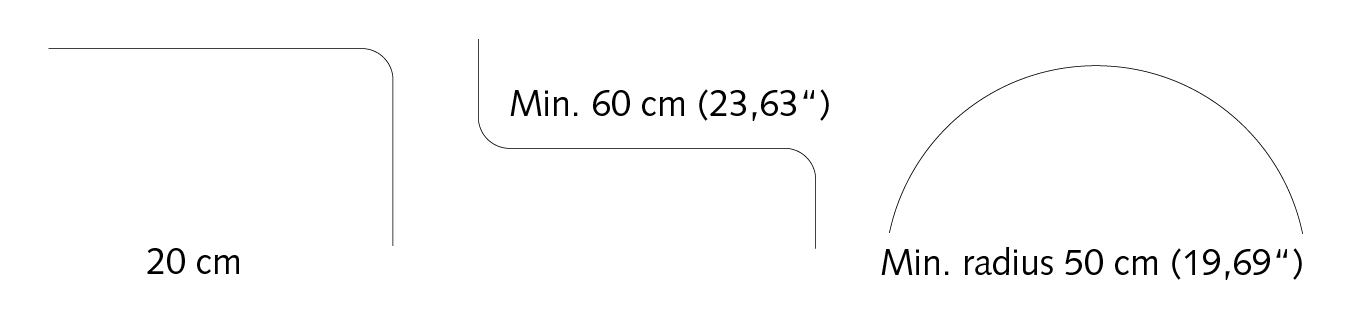

The motor can be used in a track with one or two bends of 90 degrees. The track can be bent and reversed bent with a radius of 20 cm (8”). Continuous curving can be done with the electric powered bender.
More information is available on request.
Building automation
Designed for use in any building automation system through the integrated dry contact port in the motor. 230V direct control is possible with the optional Dry Contact Relay. The BUS ports allow for individual and group controls of the motors.
Touch Control technology
A gentle pull will activate the curtain thanks to the smart Touch Control Technology of the motor. Standard feature.
Integrated emergency control
In case of power failure, the curtain can still be moved manually. Standard feature.
Diamond Sense remote control
Available in white and black, can be used to control all Forest motorized window decoration systems. With 6 individually channels or in 1 group.
Z-Wave domotica
Wireless Domotics communication with data feedback and automatic routing in a mesh-network environment. open protocol with “Scene Control”. Works with the Forest Touch App for IoS and Android devices.

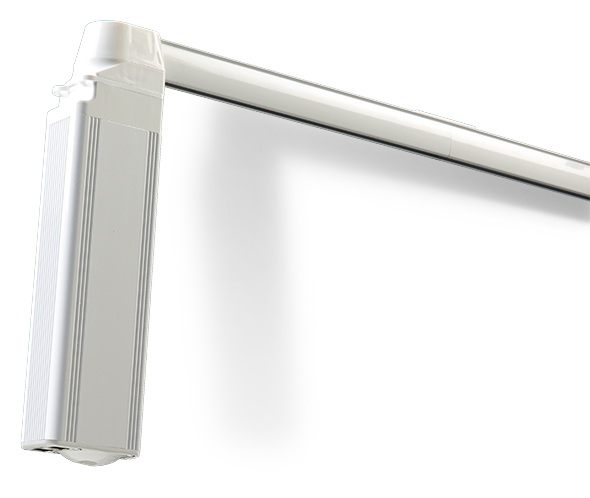

Instead of a regular ceiling fix or wall fix installation of the FMS track system, Forest Group also offers a solution for a recess fixed motorised curtain track. The FMS Plus® system is ideal for a clean, concealed curtain track installation. The recess profile can be fitted during the construction of the ceiling, the FMS Plus® motorised track can then be fitted once all the finishing works have been completed. The motor can be placed in a regular position, or inverted into the ceiling. The system can be fitted with regular FMS carriers, rotating carriers or the Forest Easyfold System for wave pleat.
All types of Forest Shuttle motors and FMS motors can be used on the FMS Plus® system.
A unique feature about this system is that it can be curved and bent, at a radius of just 20 cm. To facilitate this, special 90 degree corner pieces of the recess profile itself are available. Continuous curves up to a minimum radius of 60 cm are also possible.
It is also possible to fix the Forest MTS® Medical Track System into the recess profile, therewith creating a manual recess curtain track. More information on the FMS Plus® system is available in the Forest Shuttle® brochure.
www.amx.com In Concert Partner
www.z-wave.com Z Wave alliance partner
www.smart-homes.nl Smart homes partner
www.knx.nl KNX partner
www.crestron.com I2P partner
The Forest Shuttle is compatible with many other Building and Domotic systems, thanks to its modular construction.
