	FOREST SHUTTLE®

	Troublefree, silent and motorised by remote, app or domotics control.

In today's technical world, smart homes are on the rise. This trend includes drapery hardware and Forest Shuttle® motors are a smart choice for home integration. Capable of integrating with all major home automation systems, the Forest Shuttle® is offered in 5 versions. Forest Shuttles motors are trouble-free, ultra-quiet and come with a 10-year warranty, three more reasons they are a smart motorisation choice for your smart home innovation.

PRODUCT INFORMATION

All Shuttle® motors offer the following functions:

Controlling the curtains by Diamond Sense Remote control or wall switch by integrated Radio Frequency;
Integrated Emergency Control with automatic declutch in case of power failure, to ensure a manual operation of the curtains (standard feature);
Third-Party App control by Forest Wireless Connector;
Ultra Silent motor;
Slow start and slow stop
Full automatic setting of the limits;
Stack-back position programmable to every desired setting;

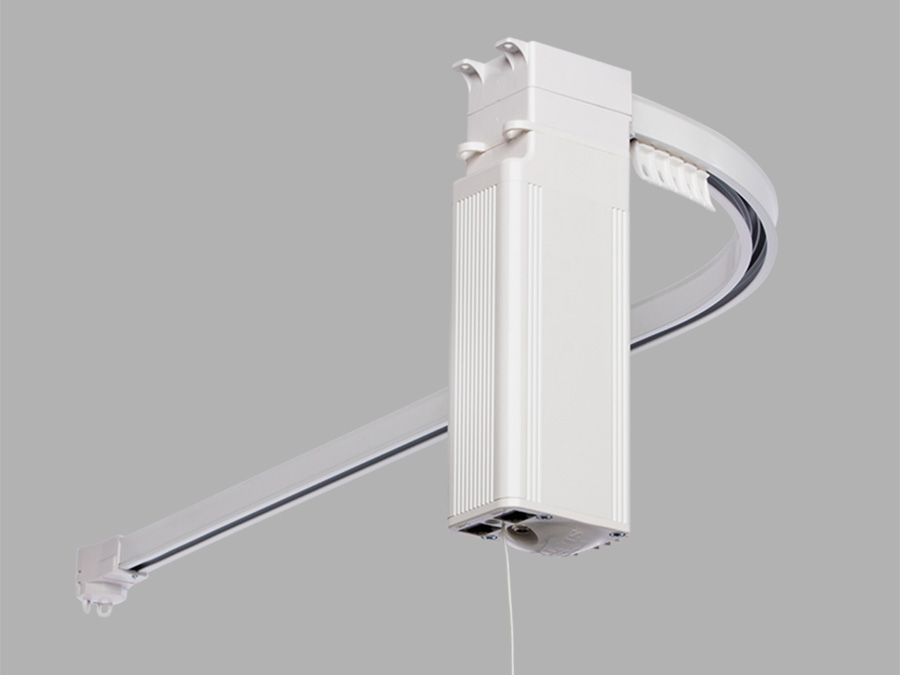

Can be used with curved track;
Programming of intermediate positions possible;
Motors can be used in combination with various motorised track systems like: Forest Motorised Track System (standard option), motorised rod (MRS) and design track system (DS-XL LED);
Tandem motor application possible as well;
Motor can be place upside down for recess installation;
All curtain track motors remains hidden behind curtain;
All Shuttle motors are warranted for 10 years.

Shuttle curtain motor

DOWNLOAD

FOREST SHUTTLE®
A SMART CHOICE

When it comes to comfort, the Forest Shuttle® lives up to its expectations. Being able to open and close your drapes remotely, from the comfort of your chair, when you are on holiday, automatically at programmed opening and closing times or even linked to variable sunrise and sunset times. The Forest Shuttle® is the silent force behind the opening and closing of draperies all over the world.

The smooth and silent running curtain track system can, in addition to remote operation, also be operated by hand. Thanks to Touch Impulse technology, a gentle pull on the curtain is enough to activate the motor.

Integrated emergency control ensures manual operation of the drapery in case of power failure. The Shuttle® is capable of integrating in all major home automation systems.

5 types

The Forest Shuttle® motorised system is available in five types:
Shuttle® L, Shuttle® M, Shuttle® S, Shuttle® AC and Shuttle® iOn

GO TO THE COMPARISON CHART

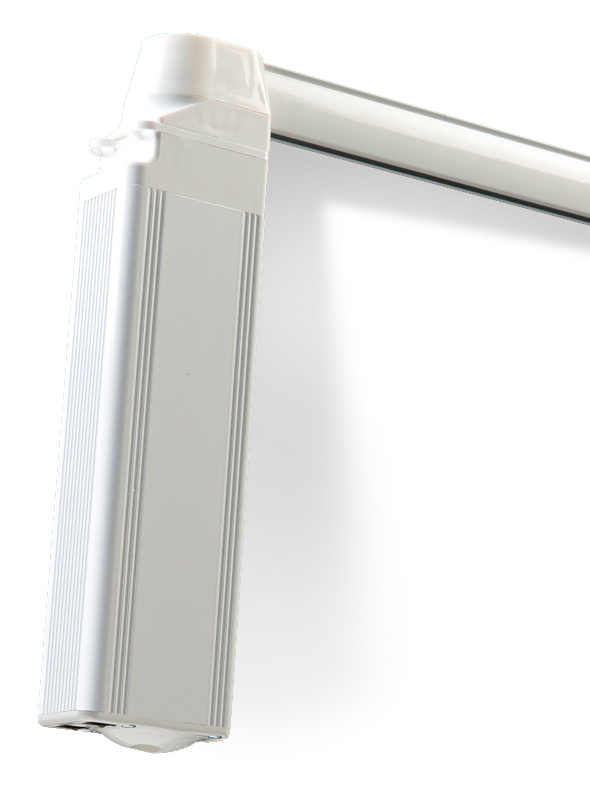

FOREST SHUTTLE® L

This curtain motor has an integrated power adaptor and only needs a mains cable. Furthermore, the RF multi receiver is integrated in the motor itself, allowing for an even cleaner look of the system. In addition to this, the motor speed can be increased by up to 20%, allowing for speeds of up to 18 cm per second. Finally, the motor is able to carry curtain weights of up to 40 kg.

On top of that, this motor still incorporates the features that customers and users all around the world have come to love and appreciate, such as the noiseless operation, smooth touch control operation, automatic declutch during power failure and of course the fact that it’s used in combination with the world’s slimmest motorized curtain track system, the FMS® rail, which can be made in lengths of up to 14 meters.

The Shuttle® L integrates with your smart home technology via dry contacts and RS485 protocol for use with popular automation systems including Lutron, Control 4, Crestron, Somfy, and many others. The Z-Wave Shuttle L offers app control through Samsung's SmartThing and Amazon's Echo or Google Home devices. Or, use Z-wave's mesh network to integrate via dry contacts.

WHAT ELSE THE SHUTTLE® L HAS TO OFFER

Plug & Play Motor;
Integrated power adaptor;
Max. Curtain weight: 40 kg;
Touch Control Technology, gently pulling the curtain by hand will activate the motor (standard feature);
Modular motor, different modules can be attached for various control options: lnfrared, Building Automation/Hotel Control;
Z-Wave Plus integration possible;

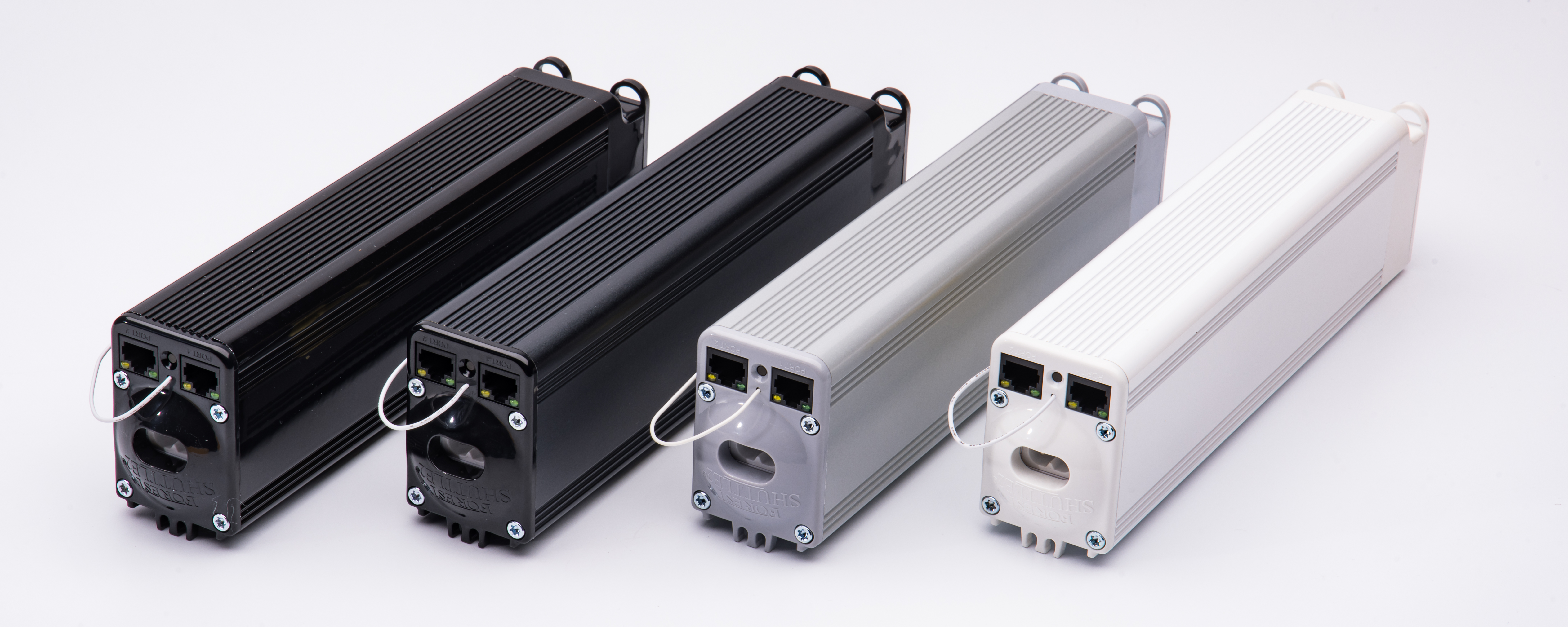

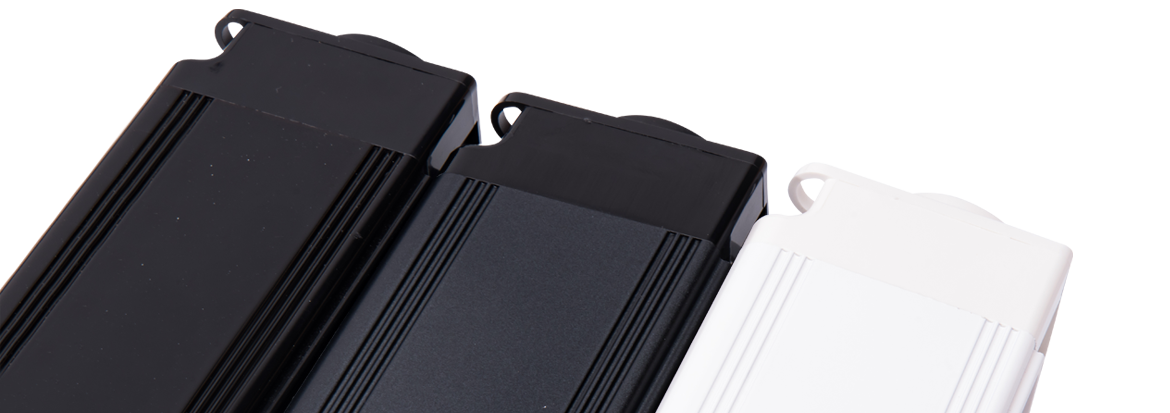

Available colours: white, grey, anthracite, black.

TECHNICAL INFORMATION SHUTTLE® L

Voltage Shuttle®	100 - 240V~ 50 - 60hz
RF Multi Receiver	Internal
Power Supply	Internal
Max. power	40 W
Torque	1 Nm
Speed	14 – 17 cm/s
Noise Level	< 40 dB(A)
Max. curtain weight	40 kg
Dimensions Motor	7 x 5 x 28 cm
Net. weight motor	975 gr.
Dimensions Power Supply	-
Protection degree	IP20
Max. running time	240 sec. (in one direction)
Certification & Marking	CE

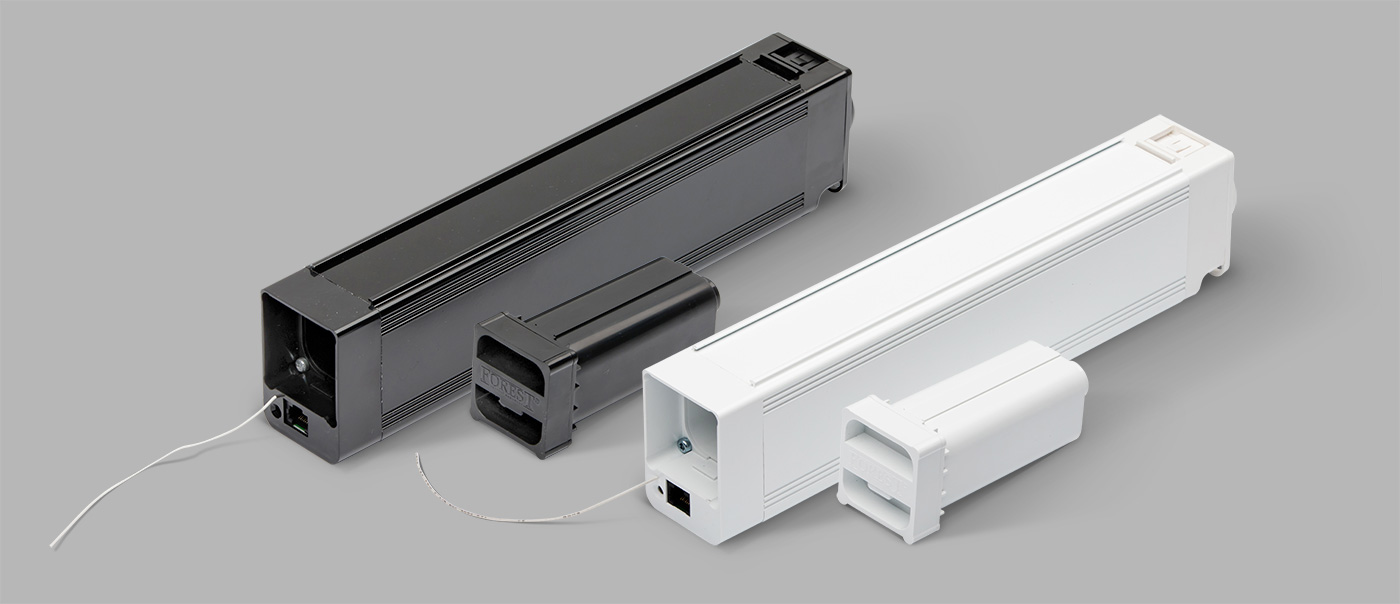

FOREST SHUTTLE® ION (BATTERY MOTOR)

Our bestselling Forest Shuttle® system is now also available in a wireless, battery powered version. The Shuttle® iOn is perfect for areas without nearby power points.

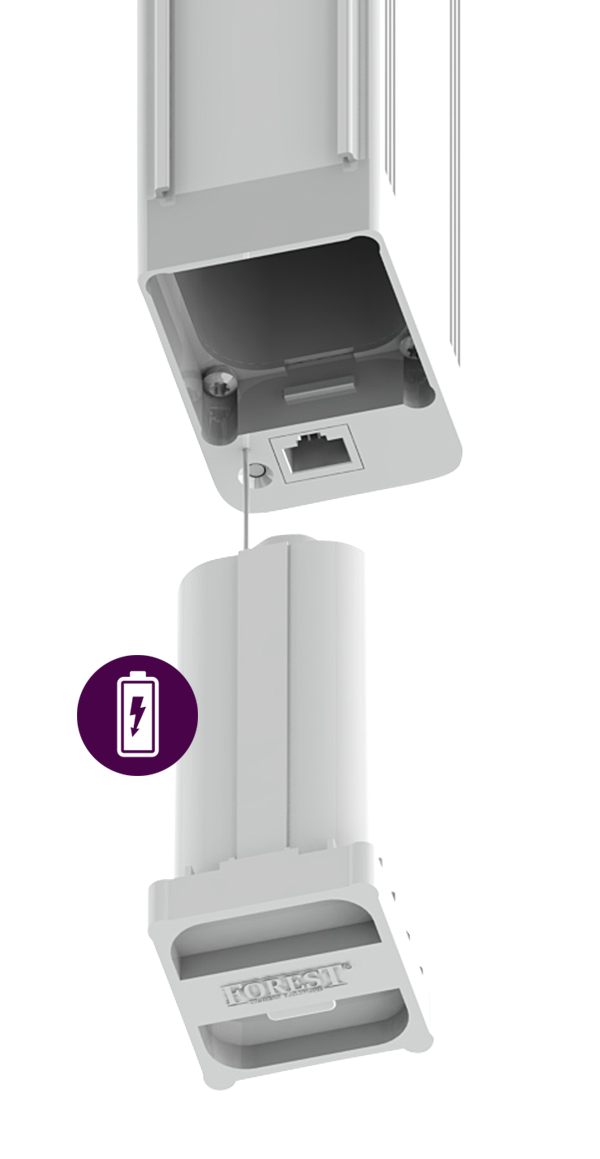

An extensive period of research, development and endurance testing on countless of track set-ups has resulted in the launch of the Forest Shuttle® iOn. The Shuttle® iOn’s motor is fitted with an internal, removable heavy duty battery pack. Depending on the track size and curtain weight, the battery only needs to be charged 2 to 3 times a year.

You can expect the same unique functionalities as that of the wired Shuttle® L, like Touch Control technology. The battery motor has an integrated Multi RF receiver, allowing for operation using any Forest remote control option.

Unique in the market

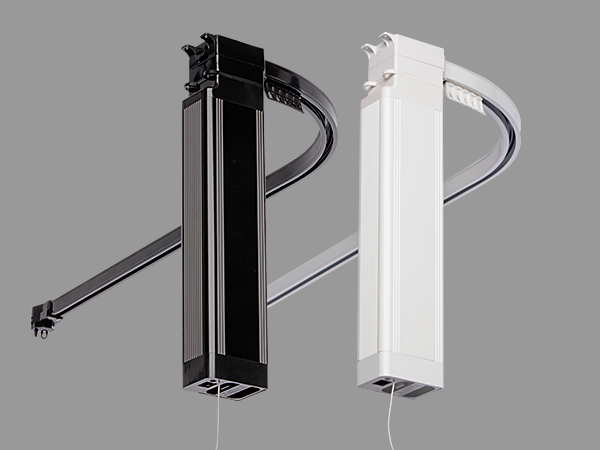

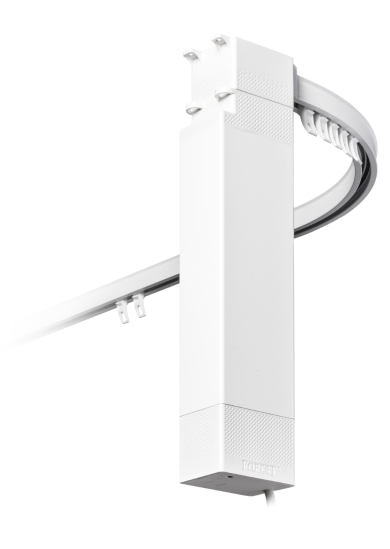

The Shuttle® iOn can be used in combination with curved tracks, which is unique in the market. It fits all Forest motorised track systems, like our most used motorised track system FMS®, motorised rod system MRS® and the motorised design track system, the DS-XL® system.

WHAT ELSE THE SHUTTLE® ION HAS TO OFFER

Li-ion rechargeable battery pack;
Touch Control Technology, gently pulling the curtain by hand will activate the motor;
Suitable for curtains up to 25 kg and 8 meter track (straight track)
Suitable for curtain tracks with up to 2 bends in, for example, bay windows.
A single full charge will last up to 6 months.
Available colours: white, black

TECHNICAL INFORMATION SHUTTLE® ION

Voltage Shuttle®	14.4Vdc
RF Multi Receiver	Internal
Power Supply	Removeable Battery, Charger input: 100 - 240, 50-60Hz, 2.0A, Charger output:16,8Vdc 1000mA
Max. power	30 W
Torque	1 Nm
Speed	14 – 17 cm/s
Noise Level	< 40 dB(A)
Max. curtain weight	25 kg
Dimensions Motor	7 x 5 x 32 cm
Net. weight motor	1160 gr.
Dimensions Power Supply	-
Protection degree	IP20
Max. running time	150 sec (in one direction)
Certification & Marking	CE

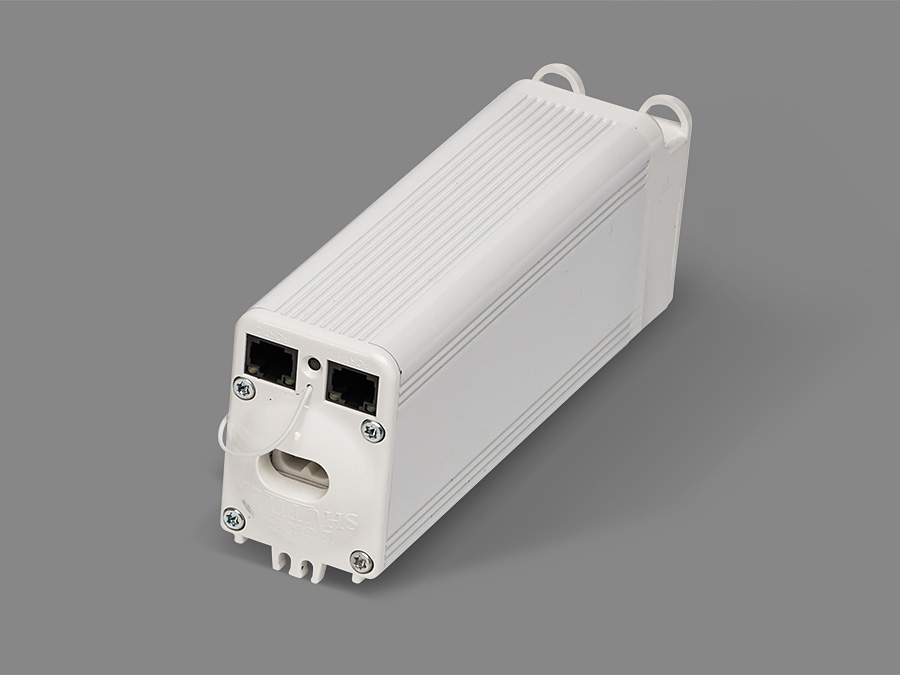

FOREST SHUTTLE® S

The Forest Shuttle® S is almost identical to the Forest Shuttle® L with the main difference that the housing is smaller than the Shuttle® L (with integrated power adaptor) because the adapter is placed external. In addition, the Shuttle® S is only available in white. The Shuttle® S integrate with your smart home technology via dry contacts and RS485 protocol for use with popular automation systems including Lutron, Control 4, Crestron, Somfy, and many others.

WHAT ELSE THE SHUTTLE® S HAS TO OFFER

Plug & Play Motor
External power adaptor
Max. Curtain weight: 40 kg
Touch Control Technology, gently pulling the curtain by hand will activate the motor;
Modular curtain motor, different modules can be attached for various control options: lnfrared, Building Automation/Hotel Control;
Available colour: white, anthracite, black

TECHNICAL INFORMATION SHUTTLE® S

Voltage Shuttle®	24Vdc
RF Multi Receiver	Internal
Power Supply	External, 100 - 240Vac - 0,8A - 50 - 60hz; output 24Vdc - 2,5A
Max. power	40 W
Torque	1 Nm
Speed	14 – 17 cm/s
Noise Level	< 40 dB(A)
Max. curtain weight	40 kg
Dimensions Motor	7 x 5 x 20 cm
Net. weight motor	700 gr.
Dimensions Power Supply	50 x 80 x 30 mm
Protection degree	IP20
Max. running time	240 sec. (in one direction)
Certification & Marking	CE

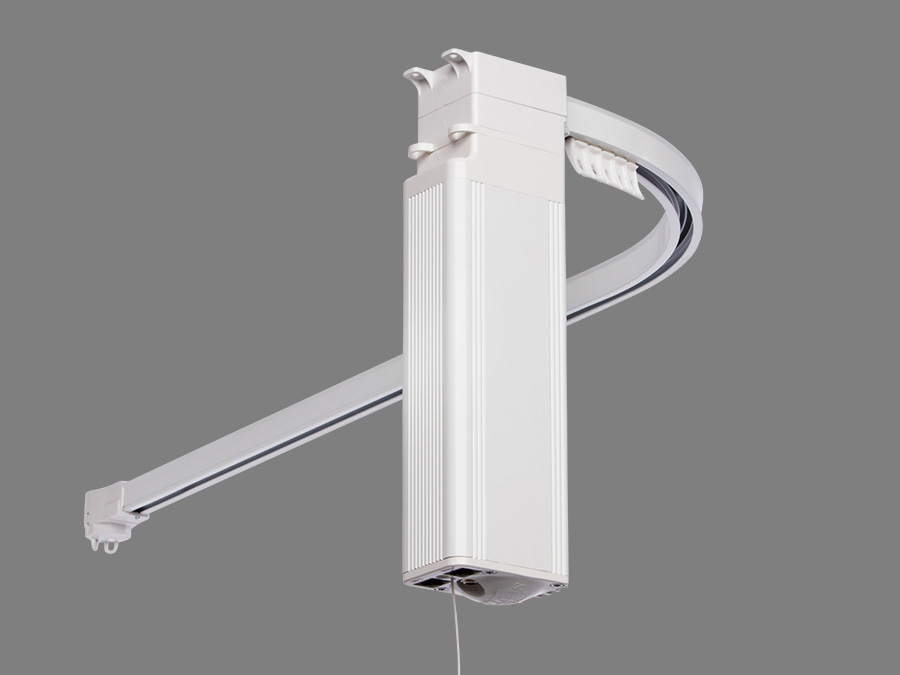

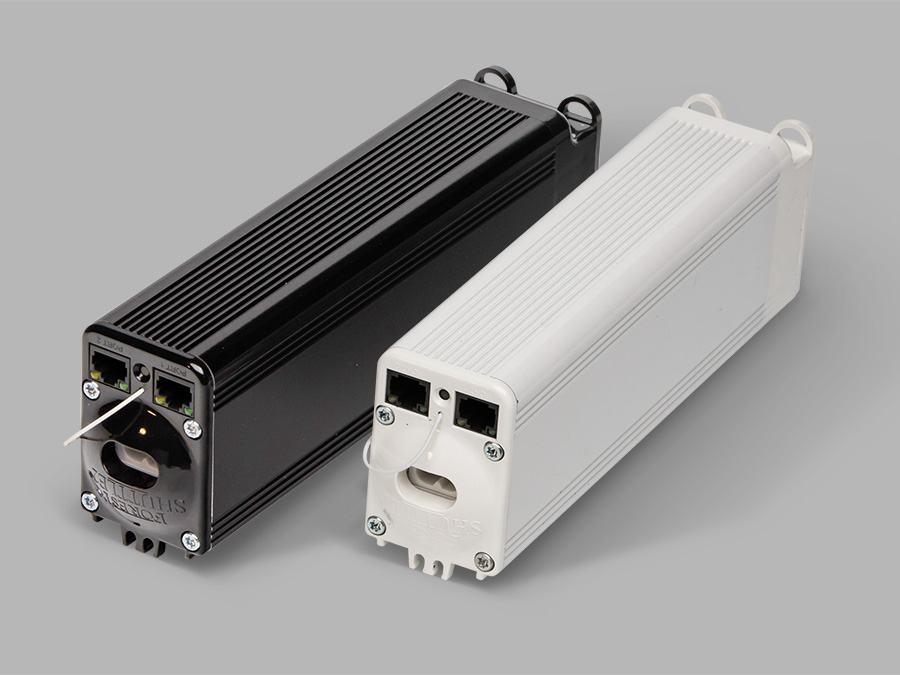

FOREST SHUTTLE® M

The Forest Shuttle® M is the most powerful curtain track motor of the Shuttle® Series. The curtain motor is able to carry curtain weights of up to 70kg. Because the adapter is placed external the Shuttle® M housing is little bit smaller than the Shuttle® L with integrated power adaptor. The Shuttle® M integrates with your smart home technology via dry contacts and RS485 protocol for use with popular automation systems including Lutron, Control 4, Crestron, Somfy, and many others. The Z-Wave Shuttle® M offers app control through Samsung's SmartThing and Amazon's Echo or Google Home devices. Or, use Z-wave's mesh network to integrate via dry contacts.

WHAT ELSE THE SHUTTLE® M HAS TO OFFER

Plug & Play Motor;
External power adaptor;
Max. Curtain weight: 70 kg;
Touch Control Technology, gently pulling the curtain by hand will activate the motor;
Modular motor, different modules can be attached for various control options: lnfrared, Building Automation/Hotel Control;
Z-Wave integration possible;
For Skylight System (FSS®) special Shuttle® M with receiver and fixed drive is available;
Available colours: white, anthracite, black

TECHNICAL INFORMATION SHUTTLE® M

Voltage Shuttle®	24Vdc
RF Multi Receiver	Internal
Power Supply	External, 1,5A - 50-60hz; output 24Vdc - 2,7A
Max. power	65 W
Torque	1,5 Nm
Speed	14 – 17 cm/s
Noise Level	< 40 dB(A)
Max. curtain weight	70 kg
Dimensions Motor	7 x 5 x 23 cm
Net. weight motor	930 gr.
Dimensions Power Supply	50 x 110 x 30 mm
Protection degree	IP20
Max. running time	175 sec. (in one direction)
Certification & Marking	CE

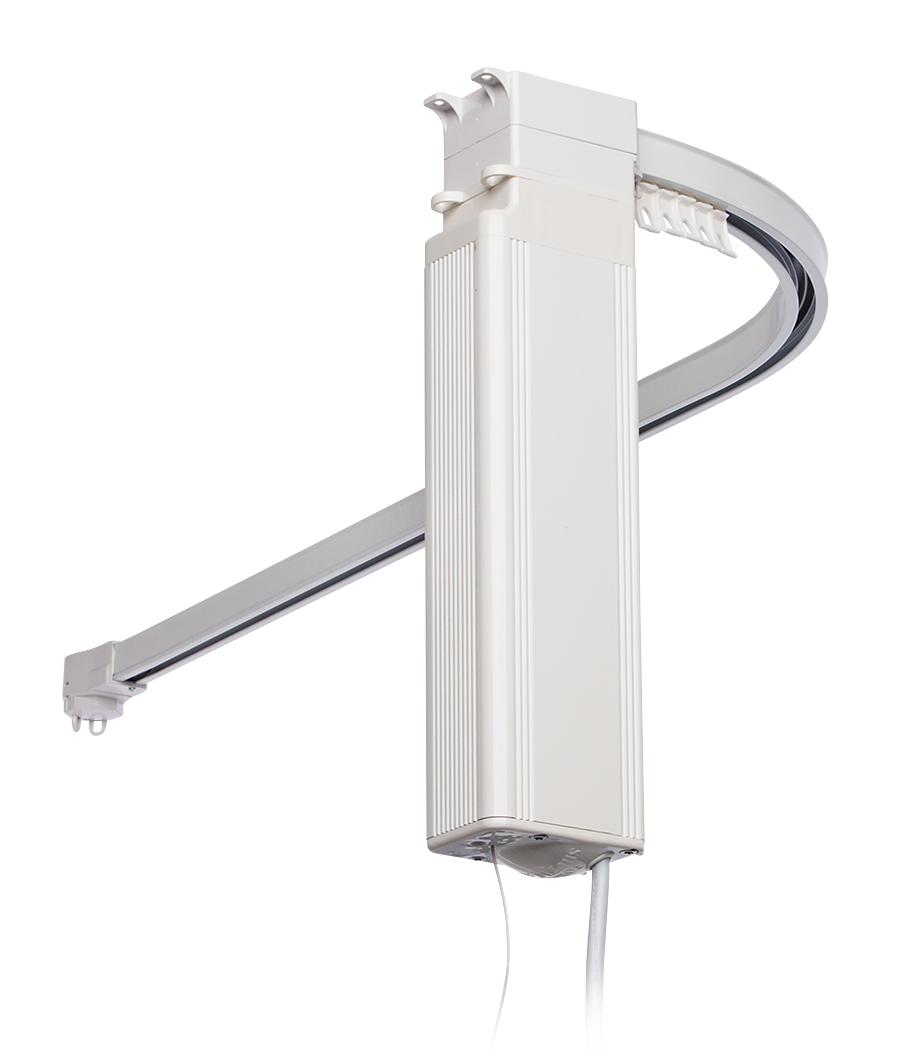

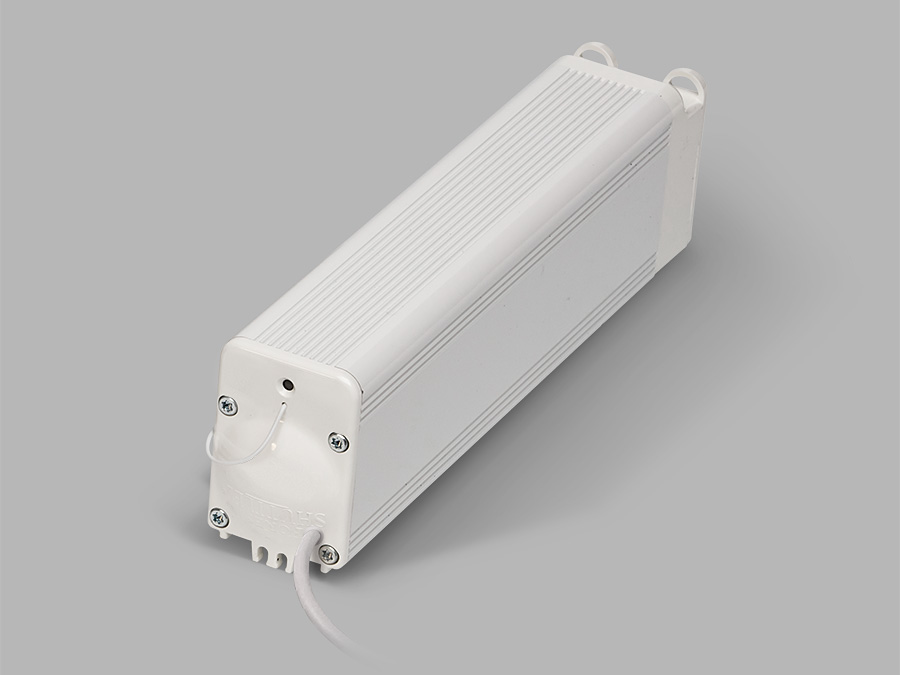

FOREST SHUTTLE® AC

The Forest Shuttle AC® motor and the Forest Shuttle® L motor look like twins, but they’re really different in some ways. Just like it’s luxurious sister, the Shuttle AC® motor stands for reliability, solidity and a smooth operation. The biggest difference is that this curtain motor is primarily a solution for 230 Volt hard-wired building management systems.

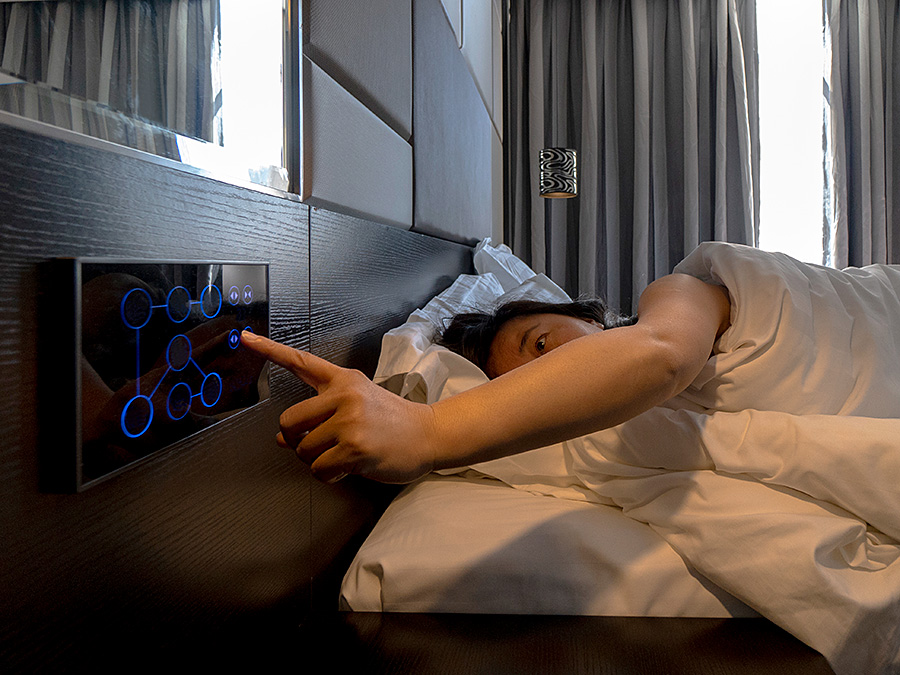

Integrating in Building Automation System
If you are looking for a curtain system that is easy to integrate into a building automation system the Shuttle® AC is a smart solution. Your project or hotel already has a building automation system? The AC motor connects to virtually any system. The big advantage of the AC motor that a data cable is not necessary any more. Ideal for refurbishment projects. The motor will use 100 – 240 V to open or close the curtain. In case of power failure you can open or close the curtain manually. The end limits of the motor will be set automatically.

WHAT ELSE THE SHUTTLE® AC HAS TO OFFER

Easy integration Building Automation System; no more data cable necessary
Suitable for 230 Volt hard-wird building management systems
Max. Curtain weight: 40 kg
Available colour: white

TECHNICAL INFORMATION SHUTTLE® AC

Voltage Shuttle®	100 - 240V~ 50 - 60hz
RF Multi Receiver	Internal
Power Supply	Internal
Max. power	40 W
Torque	1 Nm
Speed	14 – 17 cm/s
Noise Level	< 40 dB(A)
Max. curtain weight	40 kg
Dimensions Motor	7 x 5 x 28 cm
Net. weight motor	975 gr.
Dimensions Power Supply	-
Protection degree	IP20
Max. running time	240 sec. (in one direction)
Certification & Marking	CE

MOTORISED CURTAIN TRACKS OPTIONS

Standard the Forest Shuttle motors are applicable on the FMS® track system. The Shuttle® M can also be used with a Skylight system (FSS®). More decorative options are also available:

CONTROL OPTIONS

Building automation / App control

Designed for use in any building automation system through the integrated dry contact port in the motor. 230V direct control is possible with the optional Dry Contact Relay. The BUS ports allow for individual and group controls of the motors. Controlling your smart curtains by your smartphone or tablet is also possible with our app solutions: wireless connector and WiFi dongle.

Touch Control technology

A gentle pull will activate the curtain thanks to the smart Touch Control Technology of the motor.

Integrated emergency control

In case of power failure, the curtain can still be moved manually. Standard feature.

Diamond Sense remote control

Available in white and black, can be used to control all Forest motorised window decoration systems. With 15 curtain systems individually and in group by integrated timer function or manual.

Z-Wave domotica

Wireless Domotics communication with data feedback and automatic routing in a mesh-network environment. open protocol with “Scene Control”.

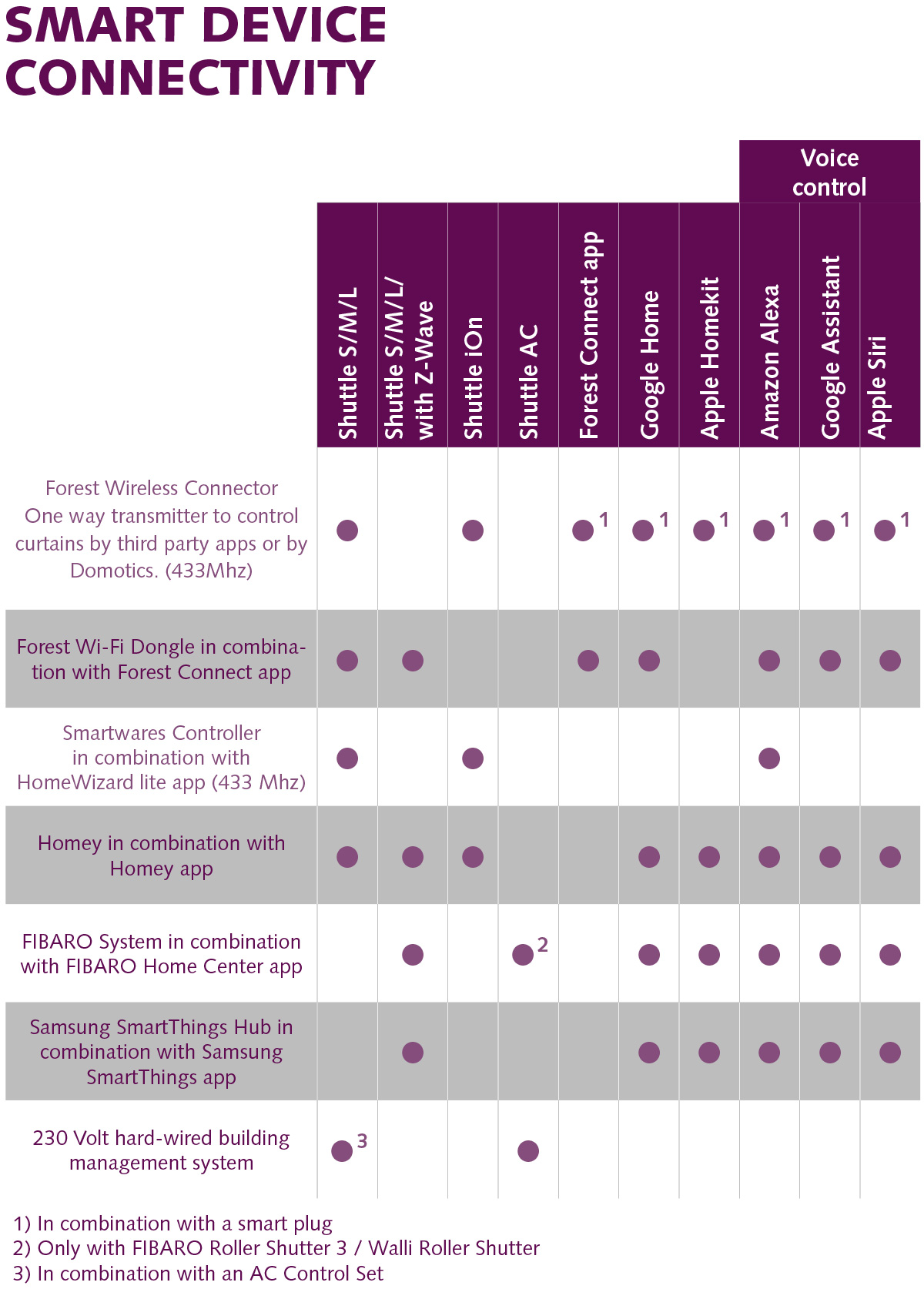

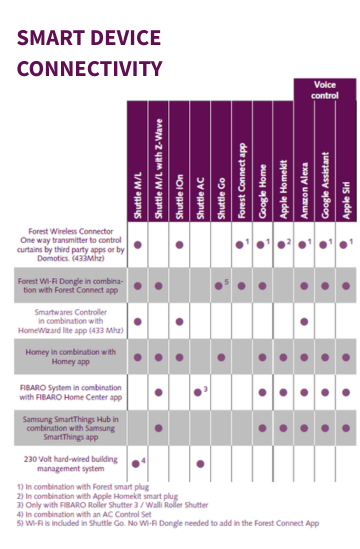

SMART DEVICE CONNECTIVITY


								Voice Control
	Shuttle S/M/L	Shuttle S/M/L with Z-wave	Shuttle iOn	Shuttle AC	Forest Connect App	Google Home	Apple Homekit	Amazon Alexa	Google Assistant	Apple Siri

Forest Wireless Connector One way transmitter to control curtains by third party apps or by Domotics. (433Mhz)	•		•		••	••	••	••	••	••
Forest Wi-Fi Dongle in combination with Forest Connect app	•	•			•	•		•	•	•
Smartwares Controller in combination with HomeWizard lite app (433 Mhz)	•		•					•
Homey in combination with Homey app	•	•	•			•	•	•	•	•
FIBARO System in combination with FIBARO Home Center app		•		•••		•	•	•	•	•
Samsung SmartThings Hub in combination with Samsung SmartThings app		•				•	•	•	•	•
230 Volt hard-wired building management system	••••			•

••	In combination with a smart plug
•••	Only with FIBARO Roller Shutter 3 / Walli Roller Shutter
••••	In combination with an AC Control Set

Works with

The Forest Shuttle is compatible with many other Building and Domotic systems, thanks to its modular construction. A competitive advantage over the motorised drapery systems in the world!
